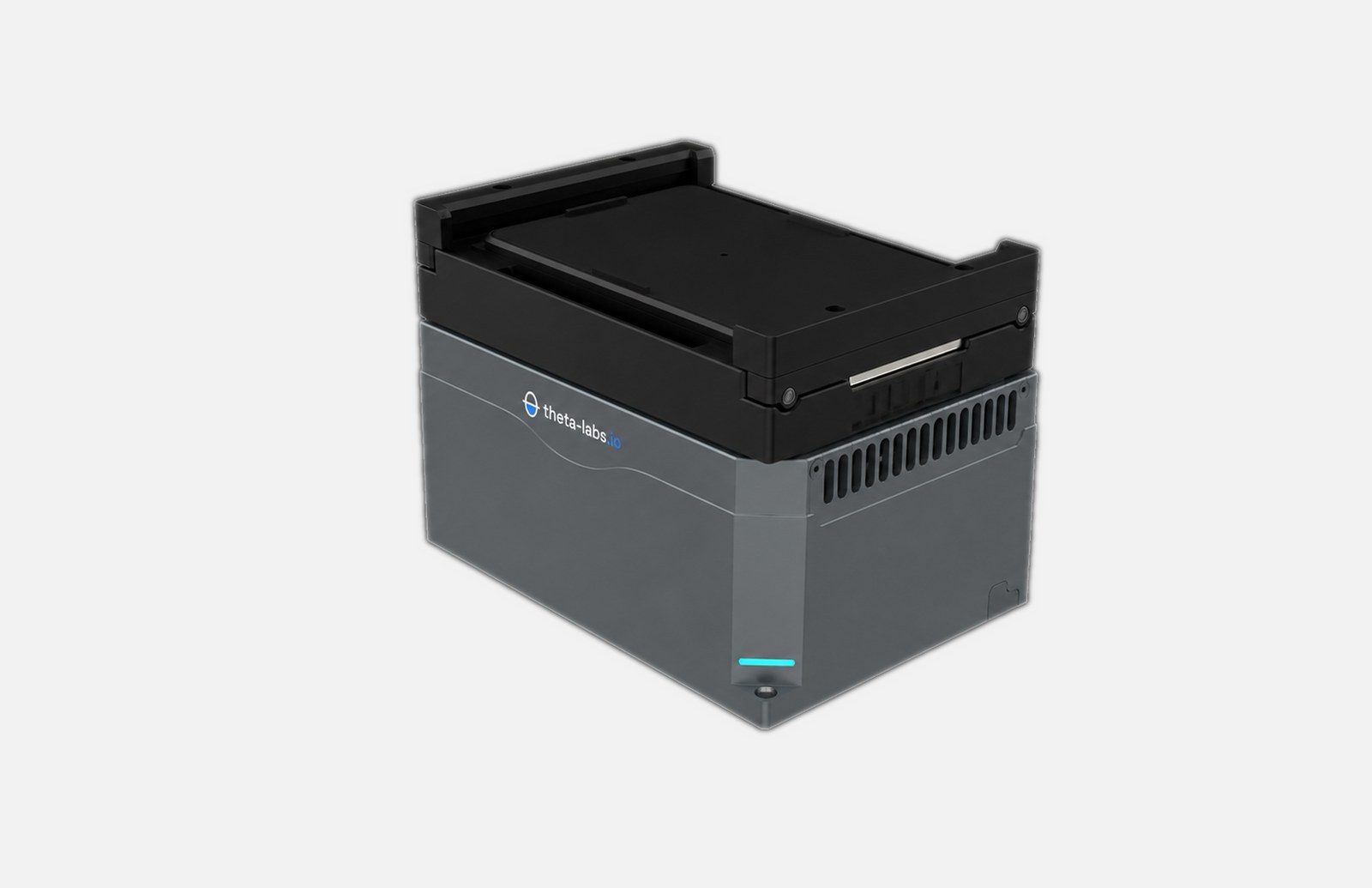

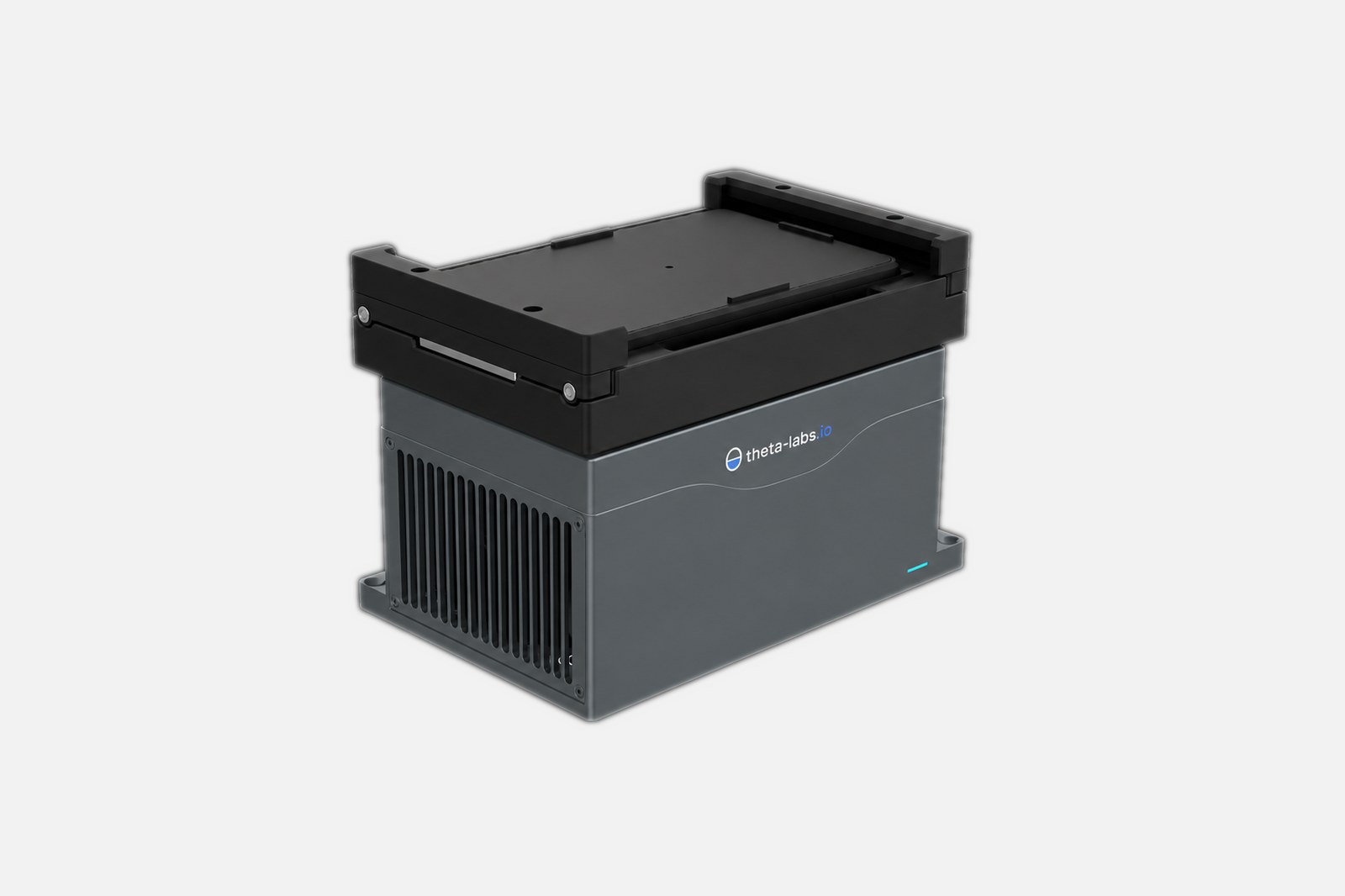

thetaFlex
Heat, cool and shake in one deck slot. Solid-state temperature control from 4 to 99 °C with bidirectional orbital mixing up to 5,000 rpm — no water bath, no external controller.
4–99°C
Temperature range
5,000rpm
Max mixing speed
±0.2°C
Temperature accuracy
±0.1mm
Positioning accuracy
Every number, in one place.
Models TL-TS in three speed configurations — 2K (3.0 mm), 3K (2.0 mm) and 5K (1.2 mm).
| Model | MTS-12-S / MTS-20-S / MTS-30-S |
| Temperature range | 4 – 99 °C |
| Heating rate (4 → 21 °C) | ≥ 36 K/min |
| Heating rate (21 → 95 °C) | ≥ 11 K/min |
| Cooling rate (95 → 21 °C) | ≥ 13 K/min |
| Cooling rate (21 → 4 °C) | ≥ 5 K/min |
| Temperature accuracy | ≤ ±0.2 °C |
| Uniformity (4 / 15 / 37 / 40 °C) | ≤ ±1.0 °C |
| Uniformity (90 °C) | ≤ ±2.0 °C |
| Amplitude (2K / 3K / 5K) | 3.0 / 2.0 / 1.2 mm |
| Max mixing speed (2K / 3K / 5K) | 2,000 / 3,000 / 5,000 rpm |
| Mixing regulation | ± 25 rpm |
| Positioning | Automatic in-situ ±0.1 mm, auto clamp |
| Dimensions (W×D×H) | 140 × 98 × 98 mm |
| Housing | Aluminum |
| Supply | 24 V DC · max 120 W |
| Interface | RS-422 / RS-485 |
| Direction | CW / CCW, selectable per run |
| Acceleration ramp | 1 – 10 s, adjustable |
| Timer mode | 1 s – 48 h, auto-stop |
| Programmable mixing | 2 phases (direction · speed · time) × N cycles |
| Speed limits | User-set upper & lower, enforced on module |
| Home position | Zero-return, solenoid lock for transfer |
| Status readback | Speed · direction · clamp · 24 fault codes |
| Temperature sensors | Block · heat sink · ambient |
| Temperature hold timer | Up to 999,999 s (≈ 11.5 days), auto-off |
| Standalone mode | Holds stored setpoint on power-up, no host |
| Stop functions | Emergency stop · stop mixing · temperature off, independent, settings retained |
| Bus addressing | 2 – 32 · up to 31 modules per host port |
| Control | RS-422/485 native · REST + WebSocket via ODM Hub |
Thermal adapters for your labware.
Interchangeable adapters optimize thermal contact for each consumable format. SBS microplates 1–384 wells are supported out of the box.
96 deep-well plate (U bottom)
96 deep-well plate (V bottom)
200 µl PCR plate
1.5 / 2 ml tubes
1.5 / 2 ml tubes + 200 µl PCR 8-strip
Tubes, PCR strip & 25 ml reservoir
25 / 100 ml reagent reservoir
200 µl PCR 8-tube strip
Flow cytometry sample preparation.
During antibody incubation, thetaFlex delivers continuous gentle mixing to prevent cell sedimentation and hold uniform binding — replacing the offline "water bath + shaker" with one unattended, automated step from incubation through washing.
Sample preparation
Plate loaded and clamped in situ.
Antibody incubation
Heating + gentle mixing.
Antibody washing
Mixing between wash cycles.
Sample collection
Ready for detection.
