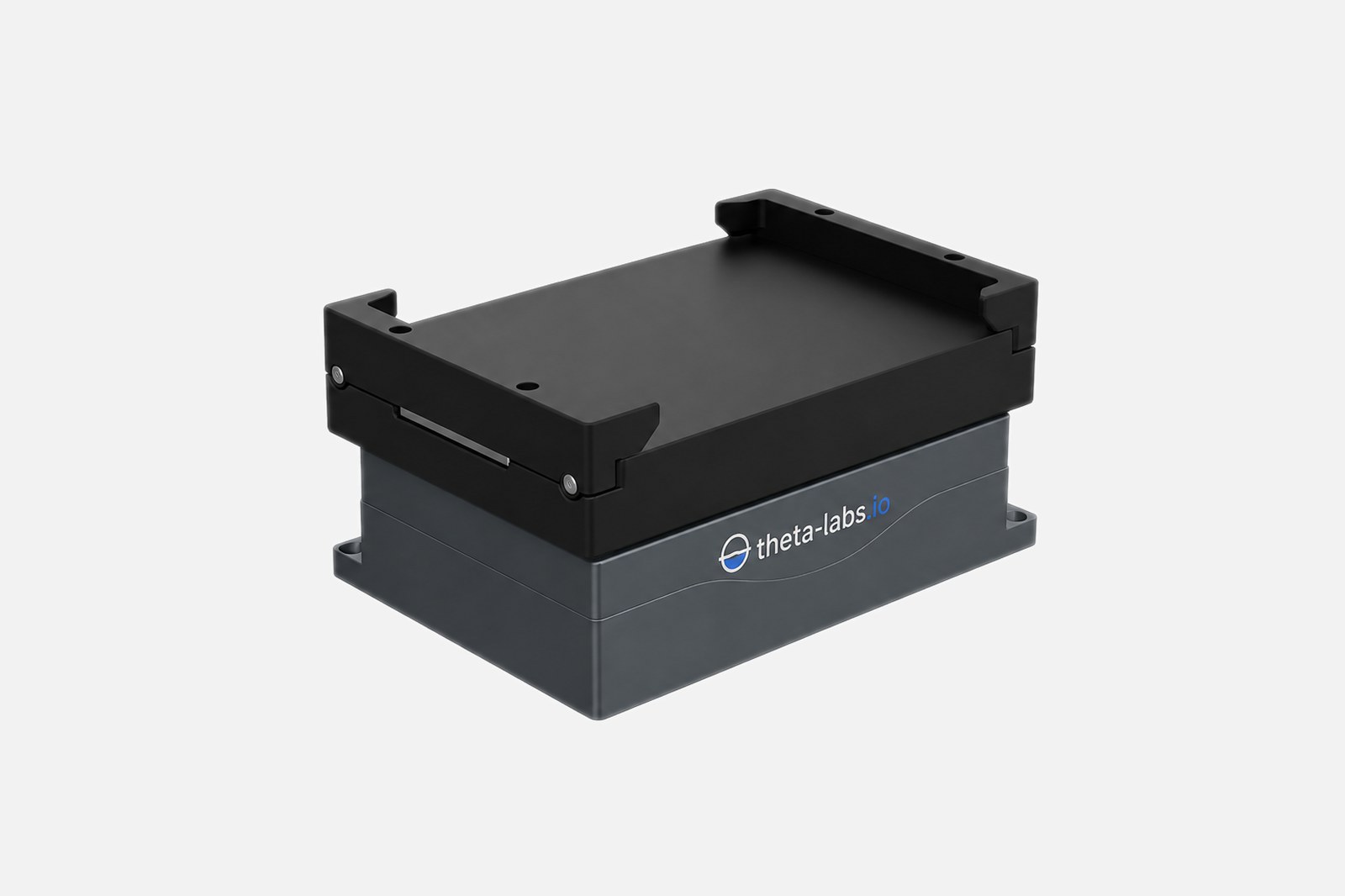

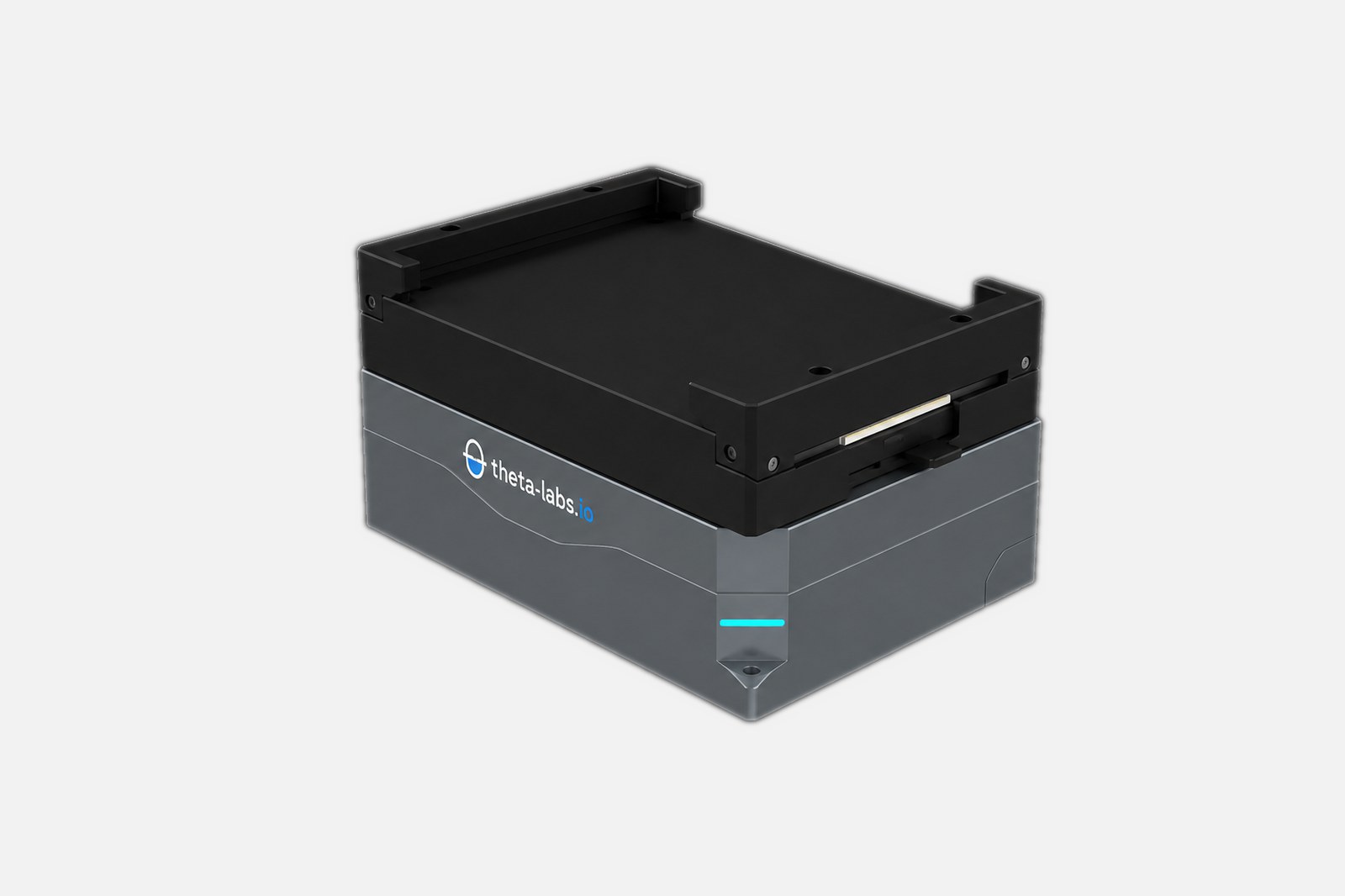

thetaShake
Pure orbital mixing in the family's lowest-profile body — beads, reagents and viscous liquids from 200 to 5,000 rpm, with no temperature control and no external controller.
5,000rpm
Max mixing speed
1.2–3.0mm
Orbital amplitude range
±0.1mm
Positioning accuracy
56mm
Deck height (lowest in family)
Every number, in one place.
Model TL-S in three speed configurations — 2K (3.0 mm), 3K (2.0 mm) and 5K (1.2 mm).
| Model | MS-12-S / MS-20-S / MS-30-S |
| Amplitude (2K / 3K / 5K) | 3.0 / 2.0 / 1.2 mm |
| Max mixing speed (2K / 3K / 5K) | 2,000 / 3,000 / 5,000 rpm |
| Mixing regulation | ± 25 rpm |
| Positioning | Automatic in-situ ±0.1 mm, auto clamp |
| Dimensions (W×D×H) | 140 × 98 × 56 mm |
| Housing | Aluminum |
| Supply | 24 V DC · max 35 W |
| Interface | RS-422 / RS-485 |
Thermal adapters for your labware.
Interchangeable adapters optimize thermal contact for each consumable format. SBS microplates 1–384 wells are supported out of the box.
96 deep-well plate (U bottom)
96 deep-well plate (V bottom)
200 µl PCR plate
1.5 / 2 ml tubes
1.5 / 2 ml tubes + 200 µl PCR 8-strip
Tubes, PCR strip & 25 ml reservoir
25 / 100 ml reagent reservoir
200 µl PCR 8-tube strip
NGS library preparation.
In automated NGS workflows, thetaShake provides consistent agitation for magnetic beads during nucleic-acid purification — replacing manual mixing, eliminating bead sedimentation and delivering uniform recovery across every sample.
DNA fragmentation
Sheared to target size.
Adapter ligation
Adapters joined to fragments.
Bead purification
Mixing keeps beads in suspension.
Library QC
Uniform, reproducible yield.
See thetaShake on your deck.
Tell us your handler and we'll help you spec thetaShake and get you an evaluation unit.
Book a Virtual Demo
