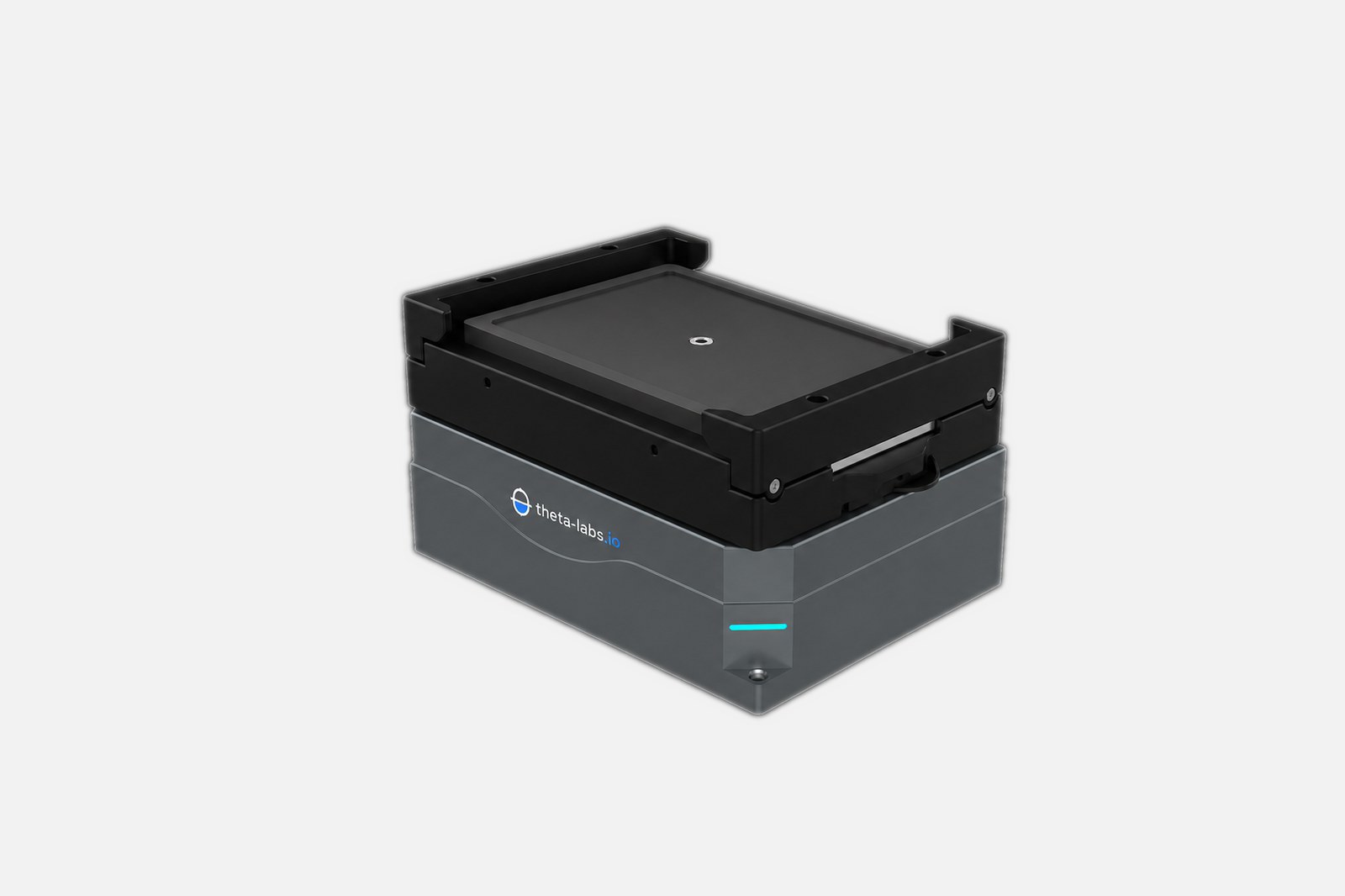

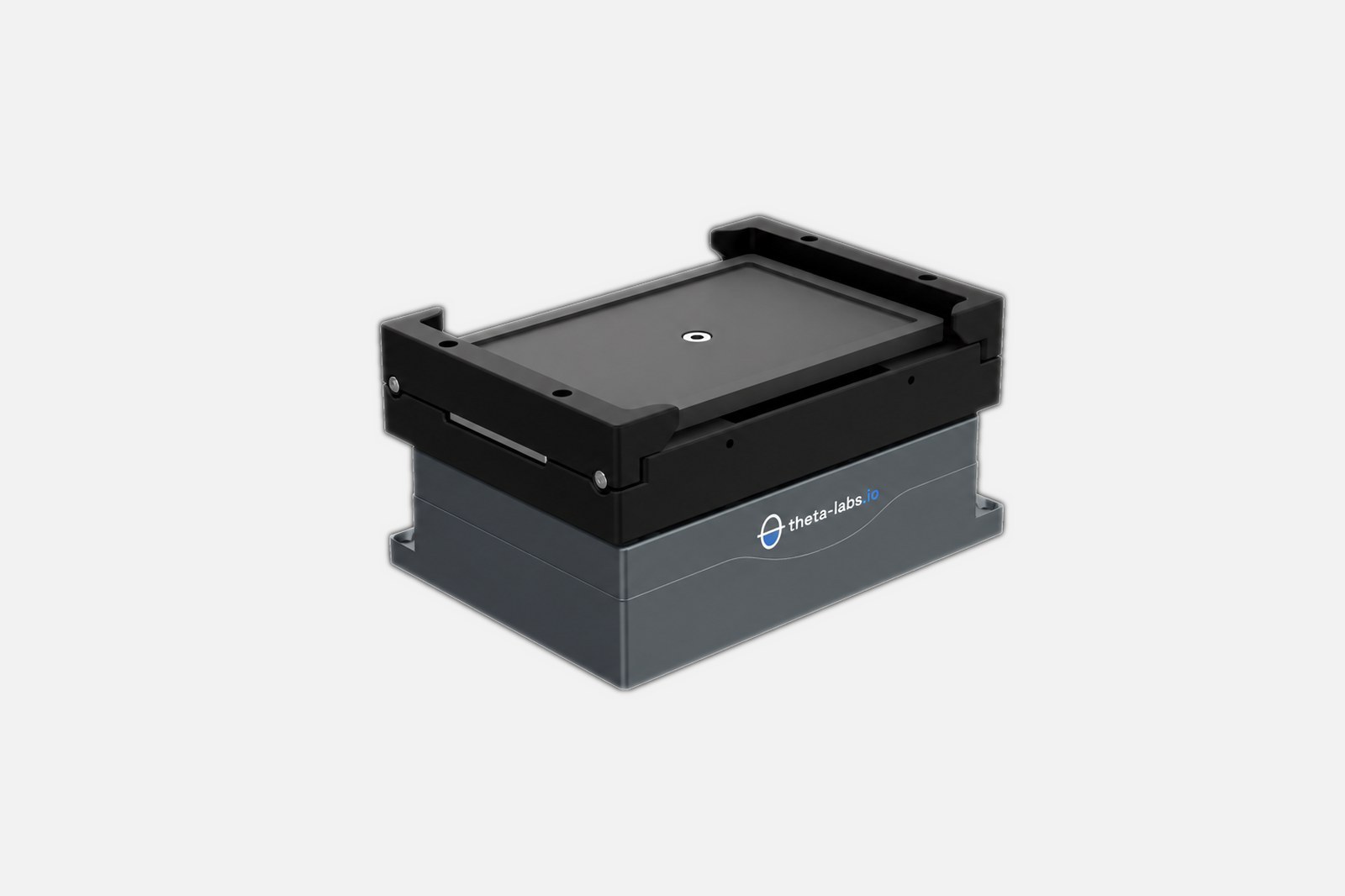

thetaShake HT
Simultaneous heating and shaking in one deck slot — drive to 99 °C while mixing to compress incubation steps from hours to minutes, with no external controller.
RT+5–99°C
Temperature range
5,000rpm
Max mixing speed
≥12K/min
Heating rate
±0.1mm
Positioning accuracy
Every number, in one place.
Model TL-HS in three speed configurations — 2K (3.0 mm), 3K (2.0 mm) and 5K (1.2 mm).
| Model | MHS-12-S / MHS-20-S / MHS-30-S |
| Temperature range | RT+5 – 99 °C |
| Heating rate (25 → 95 °C) | ≥ 12 K/min |
| Temperature accuracy | ≤ ±0.2 °C |
| Uniformity (37 / 45 °C) | ≤ ±0.5 °C |
| Uniformity (75 / 95 °C) | ≤ ±1.0 °C |
| Amplitude (2K / 3K / 5K) | 3.0 / 2.0 / 1.2 mm |
| Max mixing speed (2K / 3K / 5K) | 2,000 / 3,000 / 5,000 rpm |
| Mixing regulation | ± 25 rpm |
| Positioning | Automatic in-situ ±0.1 mm, auto clamp |
| Dimensions (W×D×H) | 140 × 98 × 60.6 mm |
| Housing | Aluminum |
| Supply | 24 V DC · max 120 W |
| Interface | RS-422 / RS-485 |
Thermal adapters for your labware.
Interchangeable adapters optimize thermal contact for each consumable format. SBS microplates 1–384 wells are supported out of the box.
96 deep-well plate (U bottom)
96 deep-well plate (V bottom)
200 µl PCR plate
1.5 / 2 ml tubes
1.5 / 2 ml tubes + 200 µl PCR 8-strip
Tubes, PCR strip & 25 ml reservoir
25 / 100 ml reagent reservoir
200 µl PCR 8-tube strip
Nucleic acid extraction.
During lysis and elution, thetaShake HT combines heat and agitation to accelerate nucleic-acid release and recovery — turning long static incubations into minutes of consistent, mixed heating.
Sample lysis
Heating + mixing.
Binding
Heating + mixing.
Washing
Mixing between washes.
Elution
Heating + mixing.
