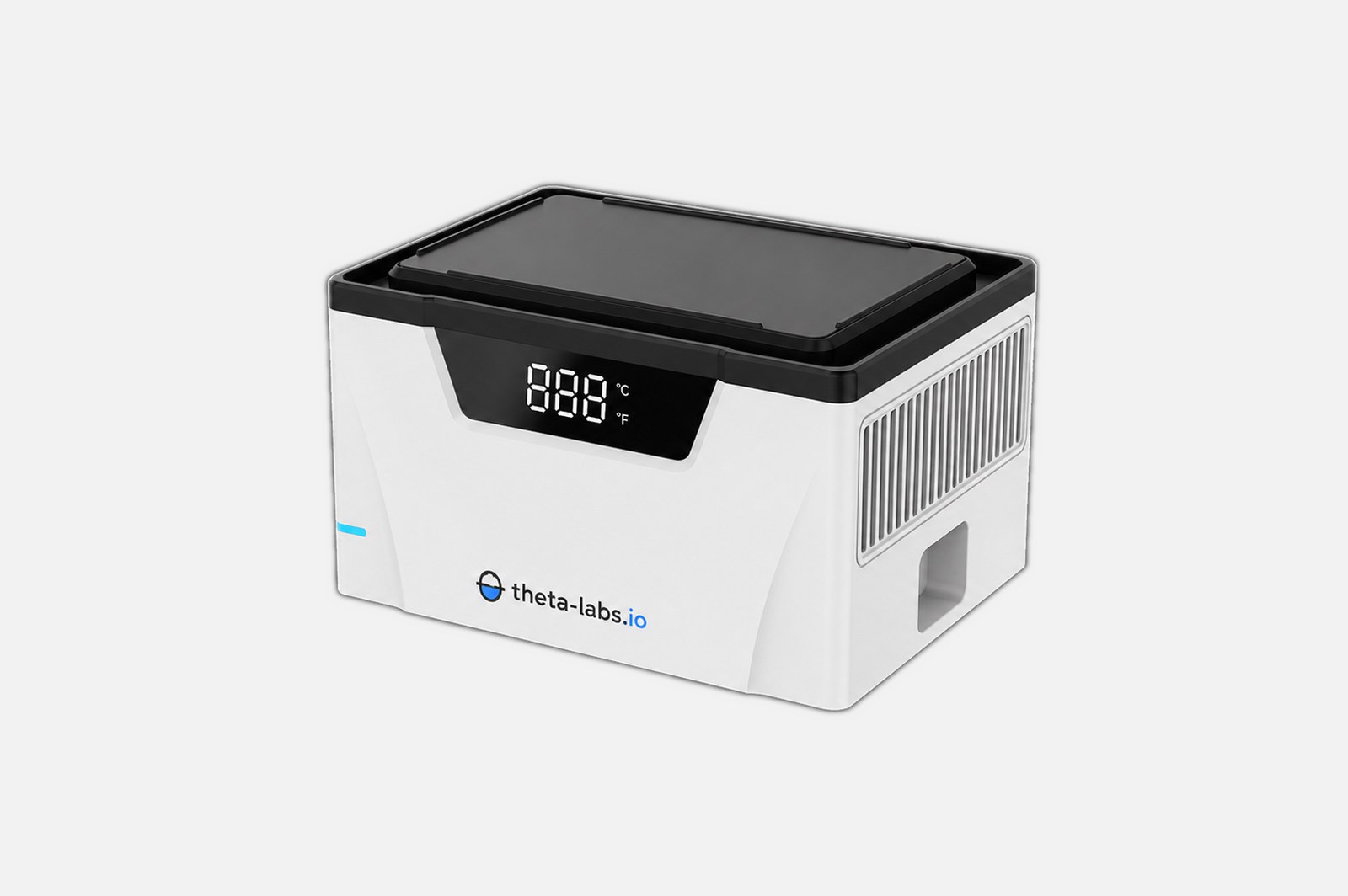

thetaTemp
Solid-state heating and cooling across the widest range in the family — 0 to 120 °C with ≤±0.2 °C control, no shaking and no external controller. Set it once and it holds that temperature every time it's powered, on a deck or on the bench.
0–120°C
Temperature range
±0.2°C
Temperature accuracy
≥20K/min
Heating rate
≥11K/min
Cooling rate
Every number, in one place.
Single model — MT-120-S. Solid-state heating and cooling, no shaking.
| Model | MT-120-S |
| Temperature range | 0 – 120 °C |
| Heating rate (4 → 21 °C) | ≥ 20 K/min |
| Heating rate (21 → 95 °C) | ≥ 8 K/min |
| Cooling rate (95 → 21 °C) | ≥ 11 K/min |
| Cooling rate (21 → 4 °C) | ≥ 6 K/min |
| Temperature accuracy | ± 0.2 °C |
| Uniformity (15 °C) | ≤ ±0.5 °C |
| Uniformity (37 / 40 °C) | ≤ ±0.6 °C |
| Uniformity (4 °C) | ≤ ±1.0 °C |
| Uniformity (90 °C) | ≤ ±2.0 °C |
| Dimensions (W×D×H) | 140 × 98 × 81 mm |
| Housing | HIPS |
| Supply | 24 V DC · max 120 W |
| Interface | RS-422 / RS-485 |
| Temperature sensors | Block · heat sink · ambient |
| Temperature hold timer | Up to 999,999 s (≈ 11.5 days), auto-off |
| Standalone mode | Holds stored setpoint on power-up, no host |
| Stop functions | Emergency stop · temperature off, independent, settings retained |
| Bus addressing | 2 – 32 · up to 31 modules per host port |
| Control | RS-422/485 native · REST + WebSocket via ODM Hub |
Thermal adapters for your labware.
Interchangeable adapters optimize thermal contact for each consumable format. SBS microplates 1–384 wells are supported out of the box.
96 deep-well plate (U bottom)
96 deep-well plate (V bottom)
200 µl PCR plate
1.5 / 2 ml tubes
1.5 / 2 ml tubes + 200 µl PCR 8-strip
Tubes, PCR strip & 25 ml reservoir
25 / 100 ml reagent reservoir
200 µl PCR 8-tube strip
PCR reagent storage & cycling.
thetaTemp maintains a stable 4 °C environment to protect reagents, then delivers rapid, precise thermal transitions during amplification — cutting cycle time while improving specificity and yield.
Reagent prep
Held at 4 °C.
Reagent mixing
Combined on deck.
Amplification
Rapid, precise cycling.
Cold storage
Products held at 4 °C.
See thetaTemp on your deck.
Tell us your handler and we'll help you spec thetaTemp and get you an evaluation unit.
Book a Virtual Demo
